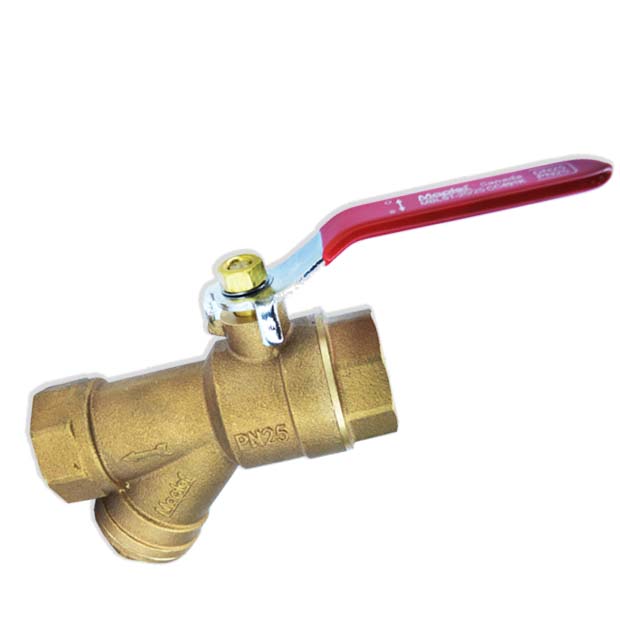

Bronze Ball Valve with Y-Strainer PN25

Pressure Rating: PN25
Connections: BS EN 10226-2, Taper Threaded (ex BS21)
Working Medium: Water, Oil, Steam

Features:

• SS304 screen
• Full bore chrome plated ball
• Screwed cap

On Request:

• NPT Threads (subject to minimum order quantities)

Hydrostatic Test Pressure:

• Shell: 37.5 bar
• Seat: 27.5 bar

Working Temperature:

• 25 bar: -10°C to 110°C (water)
