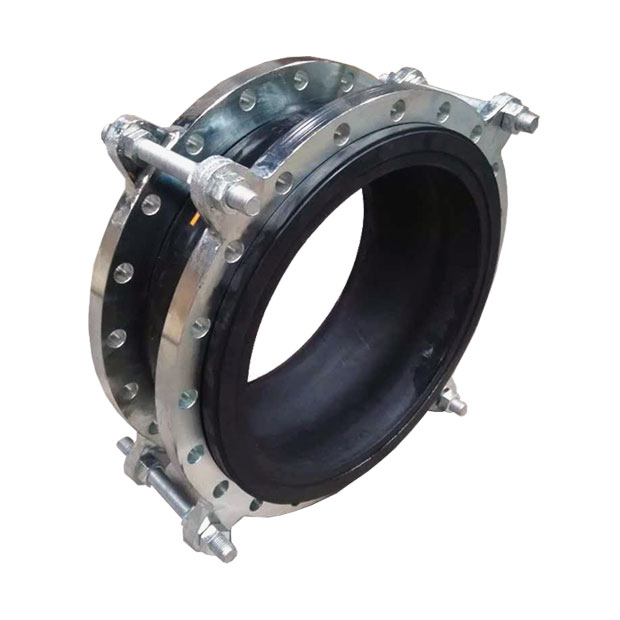

Flanged Single Sphere Rubber with Control Rods PN16

Pressure Rating: PN16
Connection: Flanged to BS EN1092-2, PN16 (ex BS4504)
Working Medium: Water, Oil, Steam

Features:

• Single sphere EPDM
• Provides a high level of installation flexibility
• Control rods

On Request:

• Other PN ratings
• Other body materials (NBR, Viton, etc.) (subject to minimum order quantities)

Hydrostatic Test Pressure:

• Shell: 37.5 bar

Working Temperature:

• 25 bar: -10°C to 100°C (water)
