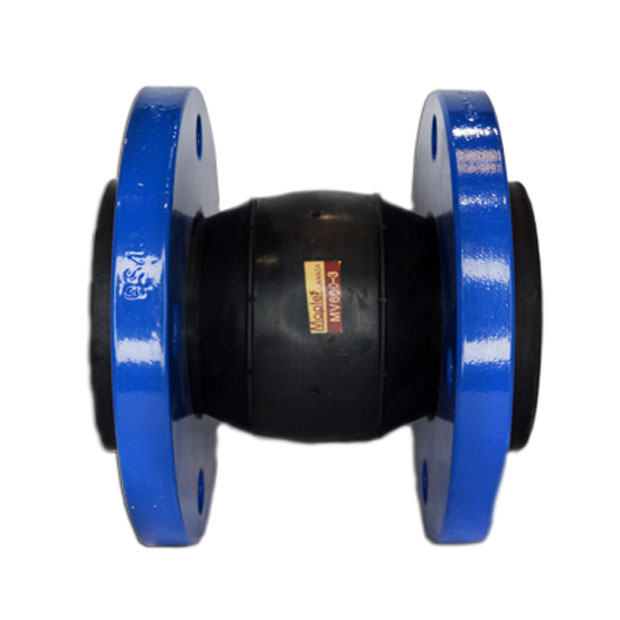

Flanged Single Sphere Rubber Bellow PN16

Model: MV600-1
Category: Rubber Flexible Connectors, Vibration & Expansion Absorption Connectors
Lineup: N/A

Pressure Rating: PN16
Connection: Flanged to BS EN1092-2, PN16 (ex BS4504)
Working Medium: Water, Oil, Steam

Features:

  • Single sphere EPDM
  • Floating flanged
  • Four-way movements for high installation flexibility
  • Precision mould of synthetic rubber reinforced with nylon cord

On Request:

  • PN Ratings
  • Body Material (NBR, Viton, etc.) (subject to minimum order quantities)

Hydrostatic Pressure:

  • Shell: 24 bar

Working Temperature:

  • 16 bar: -10°C to 100°C (water)

Product Specifications

Pressure Rating
PN16

Connection Type
Flanged to BS EN1092-2, PN16 (ex BS4504)

Product Material
EPDM
