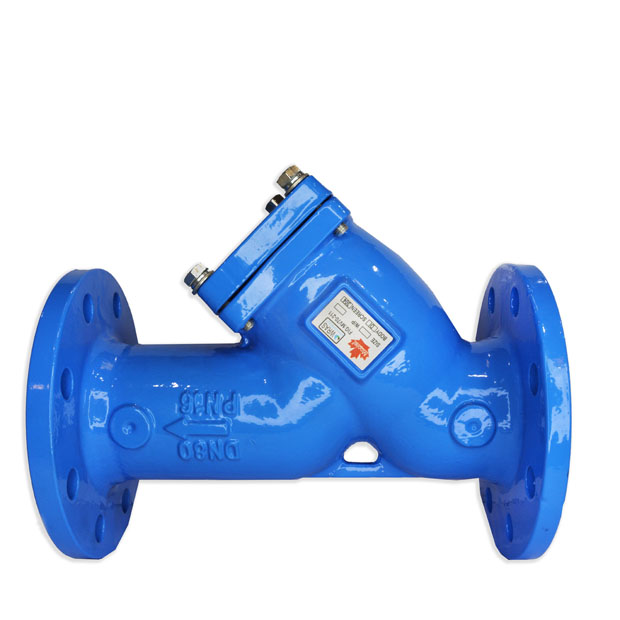

Ductile Iron Y-Type Strainer PN 16

Design: BS EN558-1 Series 1
Rating: PN16
Connection: Flanged BS EN1092-2, PN16 (ex BS 4504)
Working Medium: Water

Features:

• Bolted cover with drain plug
• Epoxy coated
• Stainless steel screen

On Request:

• ANSI standards (subject to minimum order quantities)

Hydrostatic Test Pressure:

• Shell: 24 bar

Working Temperature:

• 16 bar: -10°C to 110°C (water)
• WRAS approved: -10°C to 85°C
