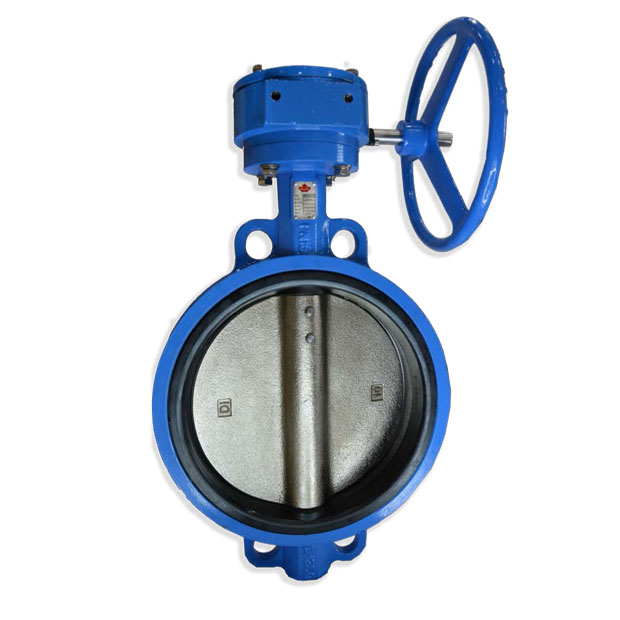

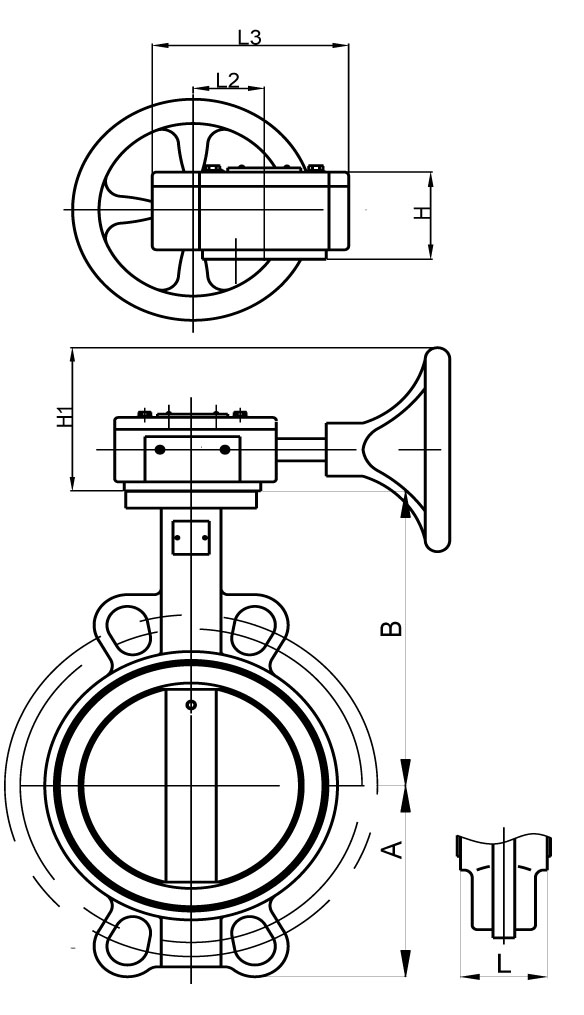

Ductile Iron, Semi Lugged, Gear Operated PN25

Model: MV20-225
Category: Butterfly Valves, General Valves
Lineup: N/A

Design: BS EN593
Rating: PN25
Connection: BS EN558-1 Face to Face series 20, Flanged to BS EN1092-2, PN25 (ex. BS 4504), Top Flange conforming to ISO 5211
Working Medium: Water, Oil, Steam

Features:

  • Semi lugged design
  • Wafer type
  • Gear operated
  • Epoxy coated
  • Replaceable liner
  • EPDM lined
  • Suitable to mount between PN25 flanges

On Request:

  • ANSI standards (subject to minimum order quantities)

Hydrostatic Test Pressure:

  • Shell: 37.5 bar
  • Seat: 27.5 bar

Working Temperature:

  • 25 bar: -10°C to 110°C (water)

Product Specifications

Pressure Rating
PN25

Connection Type
BS EN558-1 Face to Face series 20, Flanged to BS EN1092-2, PN25 (ex. BS 4504), Top Flange confirm to ISO 5211

Product Material
Ductile Iron
