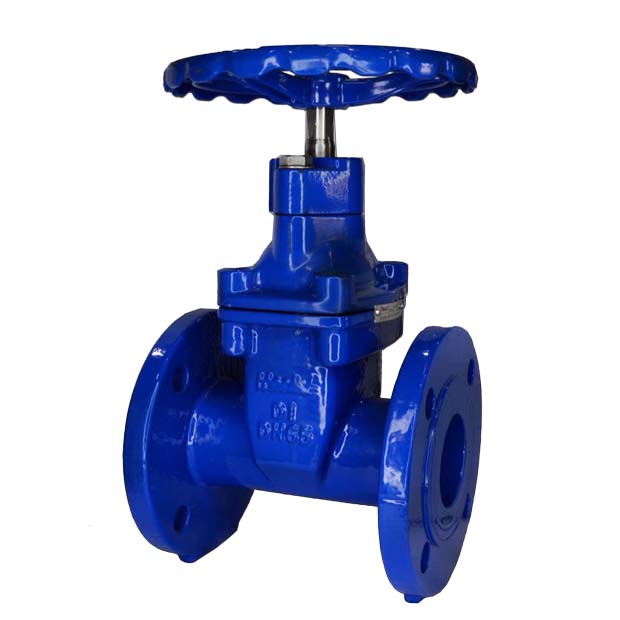

Ductile Iron Non Rising stem Resilient Seat, PN 25

Model: MV40-1235X
Category: Gate Valves, General Valves
Lineup: N/A

Design: BS 5163
Rating: PN25
Connection: Flanged to BS EN1092-2, PN25 (ex BS 4504)
Working Medium: Water, Oil, Steam

Features:

  • Non-rising stem
  • Resilient seat
  • Epoxy coated
  • EPDM coated disc
  • Raised face flanges

On Request:

  • ANSI Standards (subject to minimum order quantities)

Hydrostatic Test Pressure:

  • Shell: 37.5 bar
  • Seat: 27.5 bar

Working Temperature:

  • 25 bar: -10°C to 110°C (water)
  • WRAS approved: -10°C to 85°C

Product Specifications

Pressure Rating
PN25

Connection Type
Flanged to BS EN1092-2, PN25 (ex BS 4504)

Product Material
Ductile Iron
