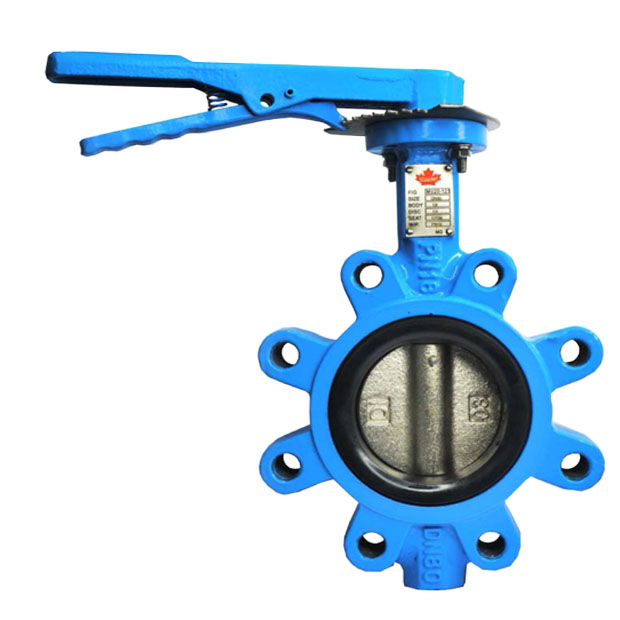

Ductile Iron, Fully Lugged, Lever Operated PN 25

Design: BS EN593
Rating: PN25
Connection: BS EN558-1 Face to Face series 20, Flanged to BS EN1092-2, PN25 (ex. BS 4504), Top Flange conforming to ISO 5211
Working Medium: Water, Oil, Steam

Features:

• Fully lugged design
• Wafer type
• Lever operated
• Epoxy coated
• Replaceable liner
• EPDM lined
• Suitable to mount between PN25 flanges

On Request:

• ANSI standards (subject to minimum order quantities)

Hydrostatic Test Pressure:

• Shell: 37.5 bar
• Seat: 27.5 bar

Working Temperature:

• 25 bar: -10°C to 110°C (water)
