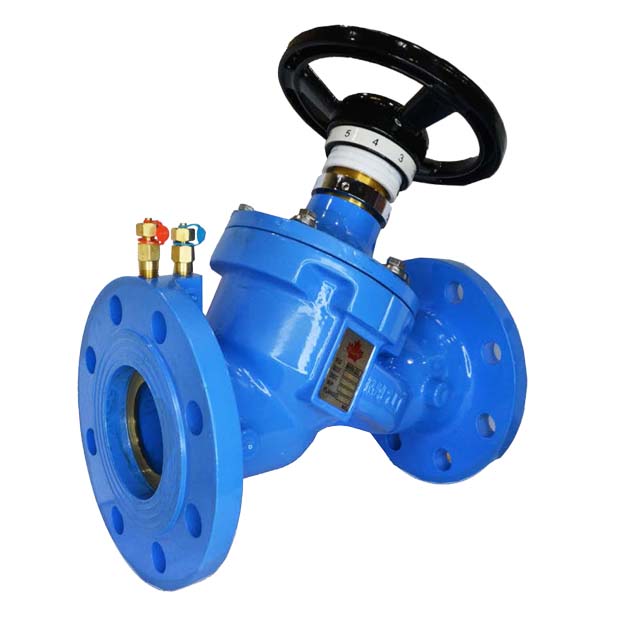

Ductile Iron Fixed Orifice Double Regulating Valve, PN16

Design: BS 7350
Rating: PN16
Connection: Flanged to BS EN1092-2, PN16 (ex BS4504)
Working Medium: Water, Oil

Features:

• Y-pattern globe
• Non-rising stem
• Epoxy coated
• EPDM coated disc
• Bolted bonnet
• DZR brass orifice
• Memory stop device
• Supplied with 2 test points

On Request:

• ANSI standards (subject to minimum order quantities)

Hydrostatic Test Pressure:

• Shell: 24 bar
• Seat: 17.6 bar

Working Temperature:

• 16 bar: -10°C to 110°C (water)
