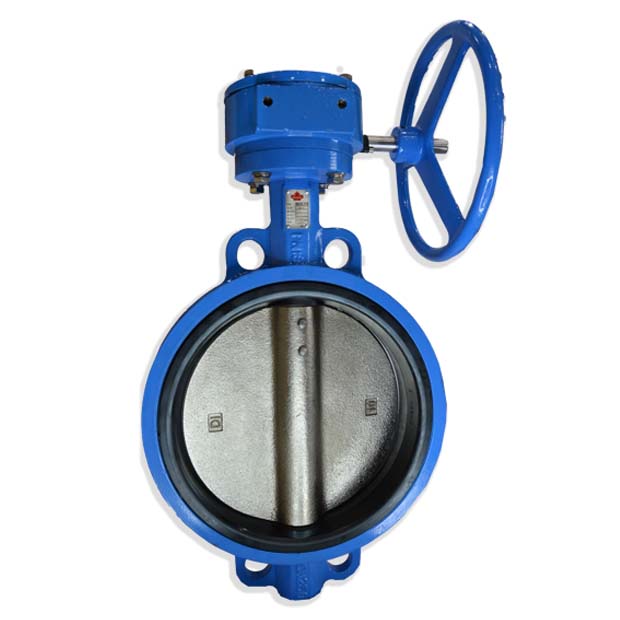

Ductile Iron, Semi Lugged, Gear Operated, PN16

Design: BS EN593
Rating: PN16
Connection: BS EN558-1 Face to Face series 20, Flanged to BS EN1092-2, PN16 (ex BS 4504), Top Flange conforming to ISO 5211
Working Medium: Water, Oil, Steam

Features:

• Semi lugged design
• Wafer type
• Gear operated
• Epoxy coated
• Replaceable liner
• EPDM lined
• Suitable to mount between PN16 flanges

On Request:

• ANSI standards (subject to minimum order quantities)

Hydrostatic Test Pressure:

• Shell: 24 bar
• Seat: 17.6 bar

Working Temperature:

• 16 bar: -10°C to 110°C (water)
• WRAS approved: -10°C to 85°C
