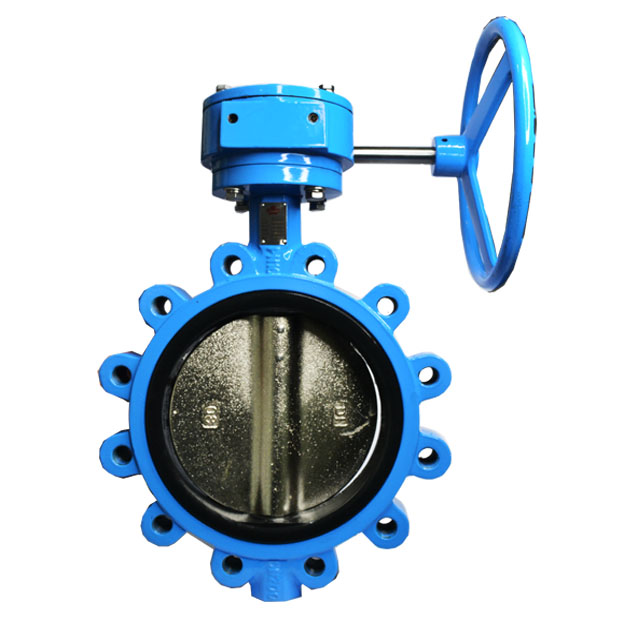

Ductile Iron, Fully Lugged, Gear Operated, PN16

Model: MV20-221
Category: Butterfly Valves, General Valves
Lineup: N/A

Design: BS EN593
Rating: PN16
Connection: BS EN558-1 Face to Face series 20, Flanged to BS EN1092-2, PN16 (ex BS 4504), Top Flange conforming to ISO 5211
Working Medium: Water, Oil, Steam

Features:

  • Fully lugged design
  • Wafer type
  • Gear operated
  • Epoxy coated
  • Replaceable liner
  • EPDM lined
  • Suitable to mount between PN16 flanges

On Request:

  • ANSI standards (subject to minimum order quantities)

Hydrostatic Test Pressure:

  • Shell: 24 bar
  • Seat: 17.6 bar

Working Temperature:

  • 16 bar: -10°C to 110°C (water)
  • WRAS approved: -10°C to 85°C

Product Specifications

Pressure Rating
PN16

Connection Type
BS EN558-1 Face to Face series 20, Flanged to BS EN1092-2, PN16 (ex BS 4504), Top Flange confirm to ISO 5211

Product Material
Ductile Iron
