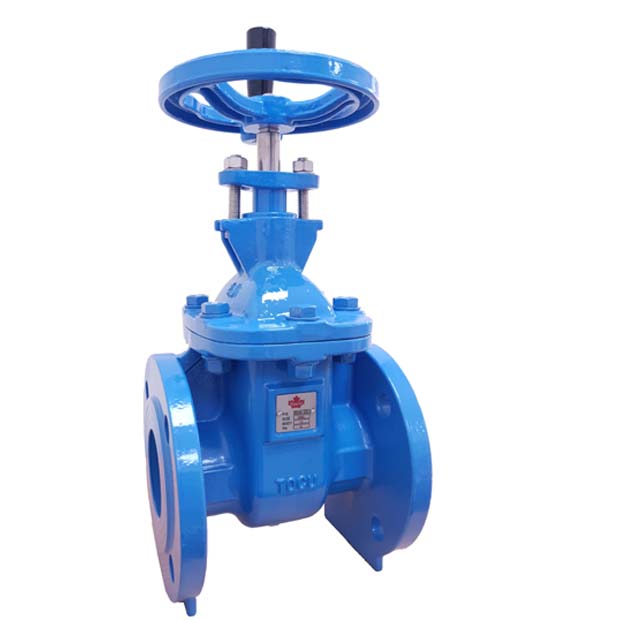

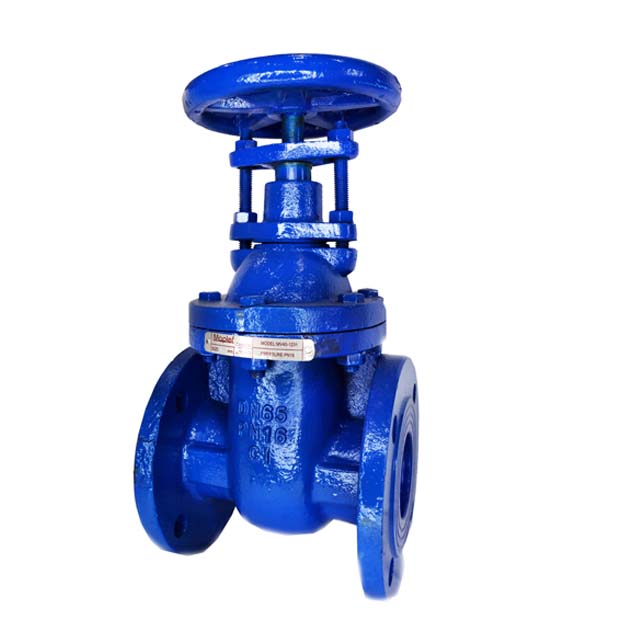

Ductile Iron Non-Rising Stem Metal Seat PN16

Model: MV40-1231
Category: Gate Valves, General Valves
Lineup: N/A

Design: BS EN 1171 (ex BS 5150)
Rating: PN16
Working Medium: Water, Oil, Steam
Connection: Flanged to BS EN1092-2, PN16 (ex BS 4504)

Features:

  • Non-rising stem, inside screw
  • Metal seat
  • Bolted bonnet
  • Single piece wedge

On Request:

  • ANSI standards (subject to minimum quantities)

Hydrostatic Test Pressure:

  • Shell: 24 bar
  • Seat: 17.6 bar

Working Temperature:

  • 16 bar: -10°C to 110°C (water)

Product Specifications

Pressure Rating
PN16

Connection Type
Flanged to BS EN1092-2, PN16 (ex BS 4504)

Product Material
Ductile Iron
