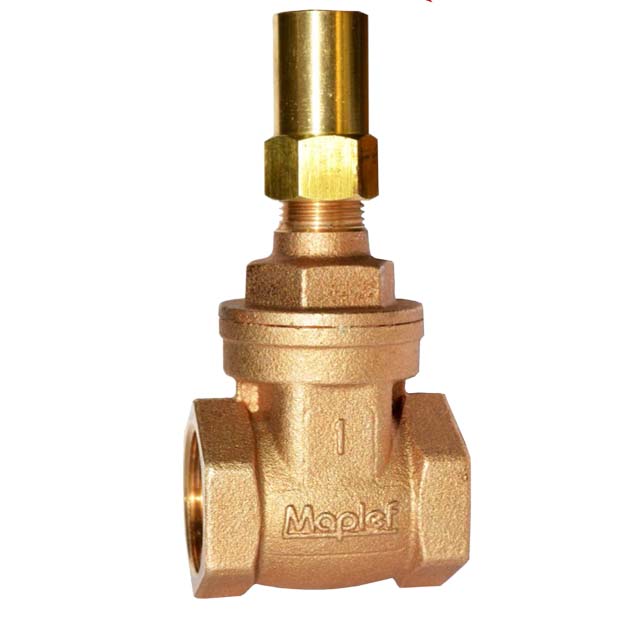

Bronze Lockshield , PN20

Model: MV40-1138.LS
Category: Gate Valves, General Valves
Lineup: N/A

Designed to: BS EN 12288/B (ex BS 5154)
Pressure Rating: PN20
Working Medium: Water, Oil, Steam

Features:

  • Threaded bonnet
  • Lock-shield stem
  • Single piece wedge

Connection: BS EN 10226-1, BSPP threaded (ex BS21)

On Request:

  • NPT Threads (subject to minimum order quantities)
  • Note: Key will be sold separately

Hydrostatic Test Pressure:

  • Shell: 30 bar
  • Seat: 22 bar

Working Temperature:

  • 20 bar: -10°C to 110°C (water)
  • WRAS approved: -10°C to 85°C

Product Specifications

Pressure Rating
PN20

Connection Type
BS EN 10226-1 BSPP threaded (ex BS21)

Product Material
Bronze
