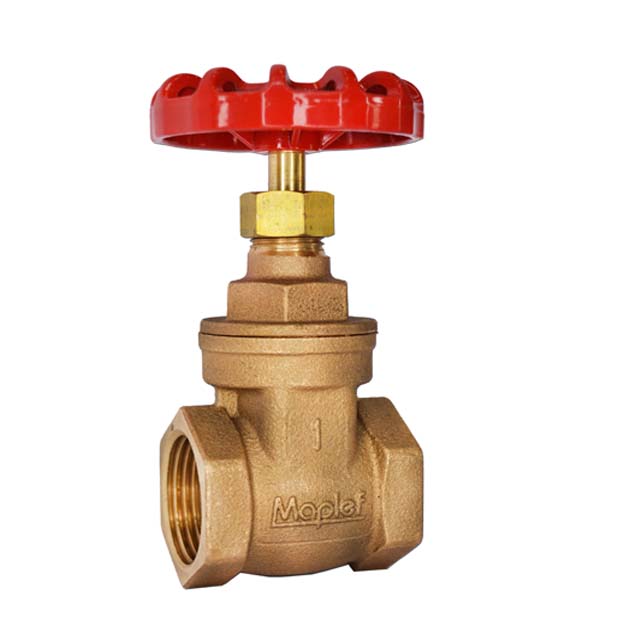

Bronze, Non-Rising Stem, PN20

Model: MV40-1138
Category: Gate Valves, General Valves
Lineup: N/A

Design: BS EN 12288/B (ex BS 5154)
Rating: PN20
Connections: BS EN 10226-1, BSPP Threaded (ex BS21)
Working Medium: Water, Oil, Steam

Features:

  • Threaded bonnet
  • Non-rising stem
  • Single piece wedge

On Request:

  • NPT Threads (subject to minimum order quantities)

Hydrostatic Test Pressure:

  • Shell: 30 bar
  • Seat: 22 bar

Working Temperature:

  • 20 bar: -10°C to 110°C (water)
  • WRAS approved: -10°C to 85°C

Product Specifications

Pressure Rating
PN20

Connection Type
BS EN 10226-1 BSPP threaded (ex BS21)

Product Material
Bronze
