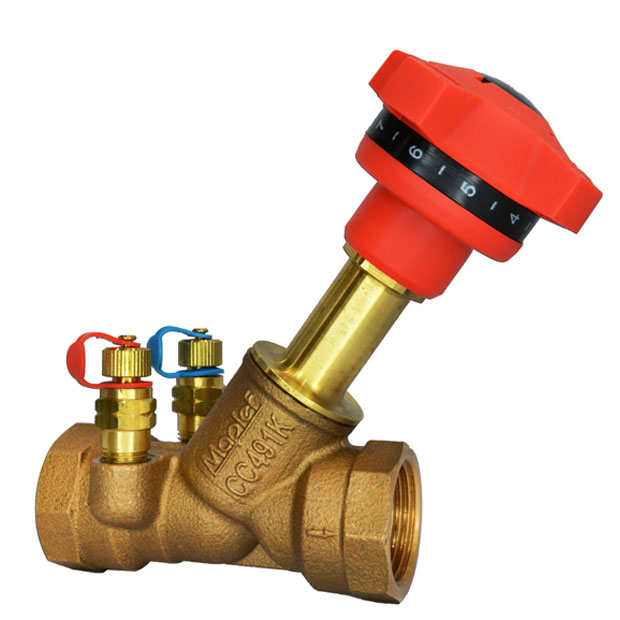

Bronze Fixed Orifice Double Regulating Valve, PN25

Model: MV60-161
Category: Balancing Valves, Flow Management & Regulation Valves
Lineup: N/A

Design: BS 7350
Rating: PN25
Connection: BS EN 10226-2, Taper Threaded (ex BS21)
Working Medium: Water, Oil, Steam

Features:

  • Numerical indicator with memory stop feature
  • Inside screw
  • Non-rising handwheel
  • Y-pattern
  • Fixed orifice
  • Characterized regulating disc
  • Supplied with 2 test points

On Request:

  • NPT Threads (subject to minimum order quantities)

Hydrostatic Test Pressure:

  • Shell: 37.5 bar
  • Seat: 27.5 bar

Working Temperature:

  • 25 bar: -10°C to 120°C (water)
  • WRAS approved: -10°C to 85°C

Product Specifications

Pressure Rating
PN25

Connection Type
BS EN 10226-2,Taper Threaded (ex BS21)

Product Material
Bronze
