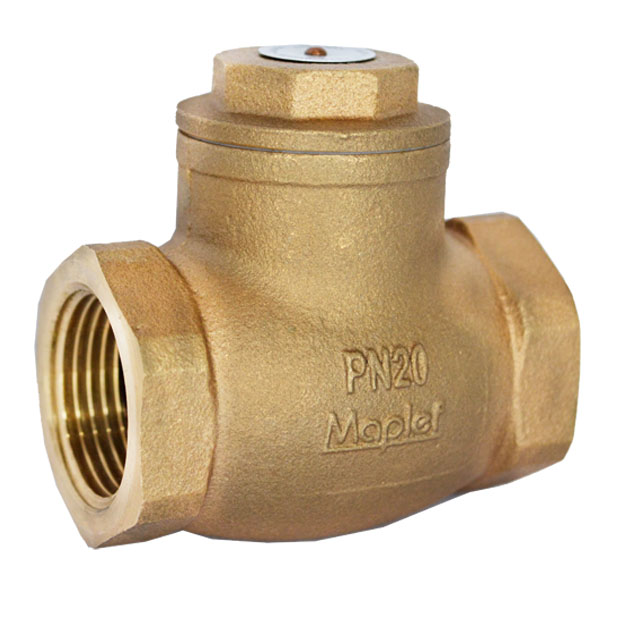

Bronze Check Valve PN20

Model: MV30-117
Category: Check Valves, General Valves
Lineup: N/A

Design: BS5154
Rating: PN20
Connection: BS EN 10226-2, Taper Threaded (ex BS21)
Working Medium: Water, Oil, Steam

Features:

  • Horizontal swing pattern
  • Threaded cover
  • Resilient seat
  • Suitable for mounting in horizontal and vertical pipes (with vertical flow upwards)

On Request:

  • NPT Threads
  • Metal seated (subject to minimum order quantities)

Hydrostatic Test Pressure:

  • Shell: 30 bar
  • Seat: 22 bar

Working Temperature:

  • 20 bar: -10°C to 110°C (water)
  • WRAS approved: -10°C to 85°C

Product Specifications

Pressure Rating
PN20

Connection Type
BS EN 10226-2,
Taper Threaded(ex BS21)

Product Material
Bronze
