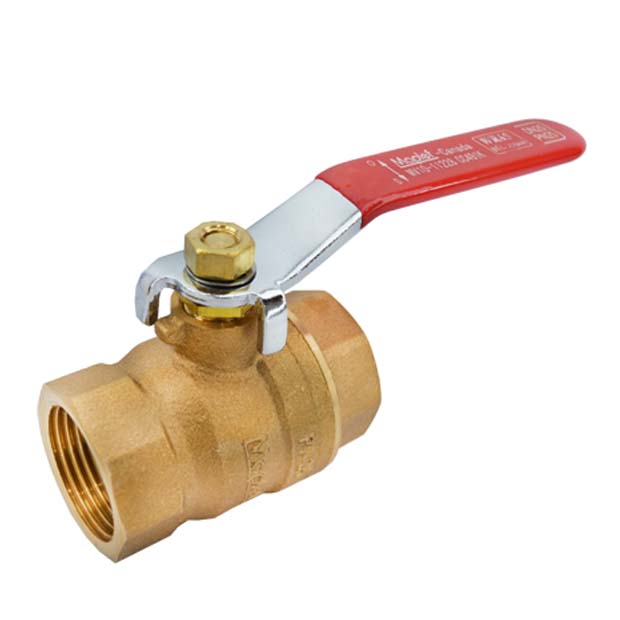

Bronze Two Piece, Full Bore, PN25

Pressure Rating: PN25
Connections: BS EN 10226-2, Taper Threaded (ex. BS21)
Working Medium: Water, Oil, Steam

Features:

• Two-piece body
• Full bore chrome plated ball
• Blow out proof stem
• PTFE seats and stem seals

On Request:

• NPT Threads (subject to minimum order quantities)

Hydrostatic Test Pressure:

• Shell: 37.5 bar
• Seat: 27.5 bar

Working Temperature:

• 25 bar: -10°C to 110°C (water)
• WRAS approved: -10°C to 85°C
